 Technical Details

 Side-mounted Filters
 Ø Diameter 400 500 600 750 900
 Height overall 715 800 875 1045 1215
 Connections 1½ " 1½ " 1½ " 1½ " 2½ "
 Flow Rate m³/h 6 9 14 21 30
 Pool Volume, m³ aprox. 48 72 112 168 240
 Filter Sand, kg 60 100 150 300 550
 Net Weight, kg 7 12 14 24 34
 Packing Volume, m³ 0,15 0,29 0,4 0,67 1,3

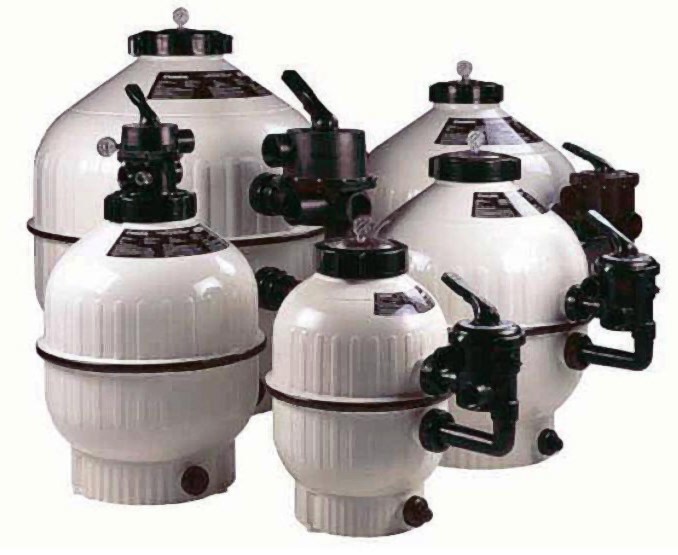

CANTABRIC

  Standard-Features

  • Time-proven internal design ensures that all water receives maximum filtration for crystal clear results.

  • The patented GlasLok™ process creates a one-piece, fibreglass reinforced tank with UV resistant coating.

  • All filter fittings are threaded for easy servicing.

  • A 360º diffuser to keep the sand bed flat for optimum filtration. The diffuser  has a "swing away" design for instant access to sand.

  • Maximum operating pressure 3,5 bar and maximum operating temperature 50ºC.

  • 10-year tank warranty..

NEW TECHNOLOGY

Thanks to the innovative new Clear Pro Technology, the new range of Triton II Filters can now absorb even the finest dust particles (up to 5 microns) and guarantee   crystal clear pool water.

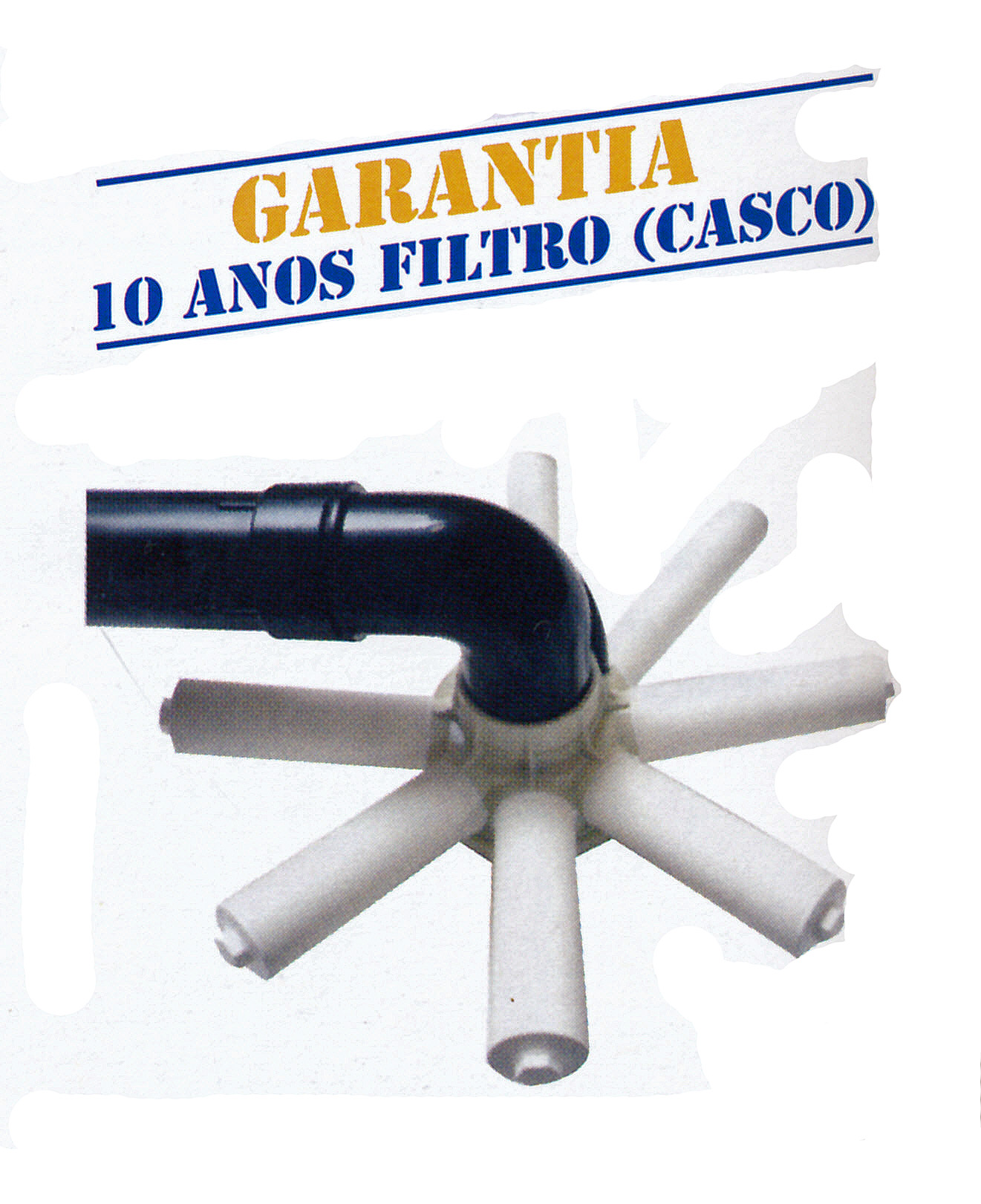

This innovation consists of a porous, permeable tube, which allows water to pass through without loss of flow while filtering out the finest particles of dust, algae or pollen.

As a result Triton II Filters offer pool water of unequalled purity.
    TR 40 TR 60 TR 100 TR 140
  Filter area m2 0,17 0,29 0,45 0,64
  Flow rate m3/h 8,5 14 22 32
  Filtersand, coarse-fine kg 20-52 40-108 80-200 120-310
  Height mm 825 955 1095 1200
  Ø Diameter mm 480 610 762 914
  The manufacturer reserves the right, to change all or part of the above features without prior notice.
The manufacturer reserves the right, to change all or part of the above features or the contents of this document without prior notice.

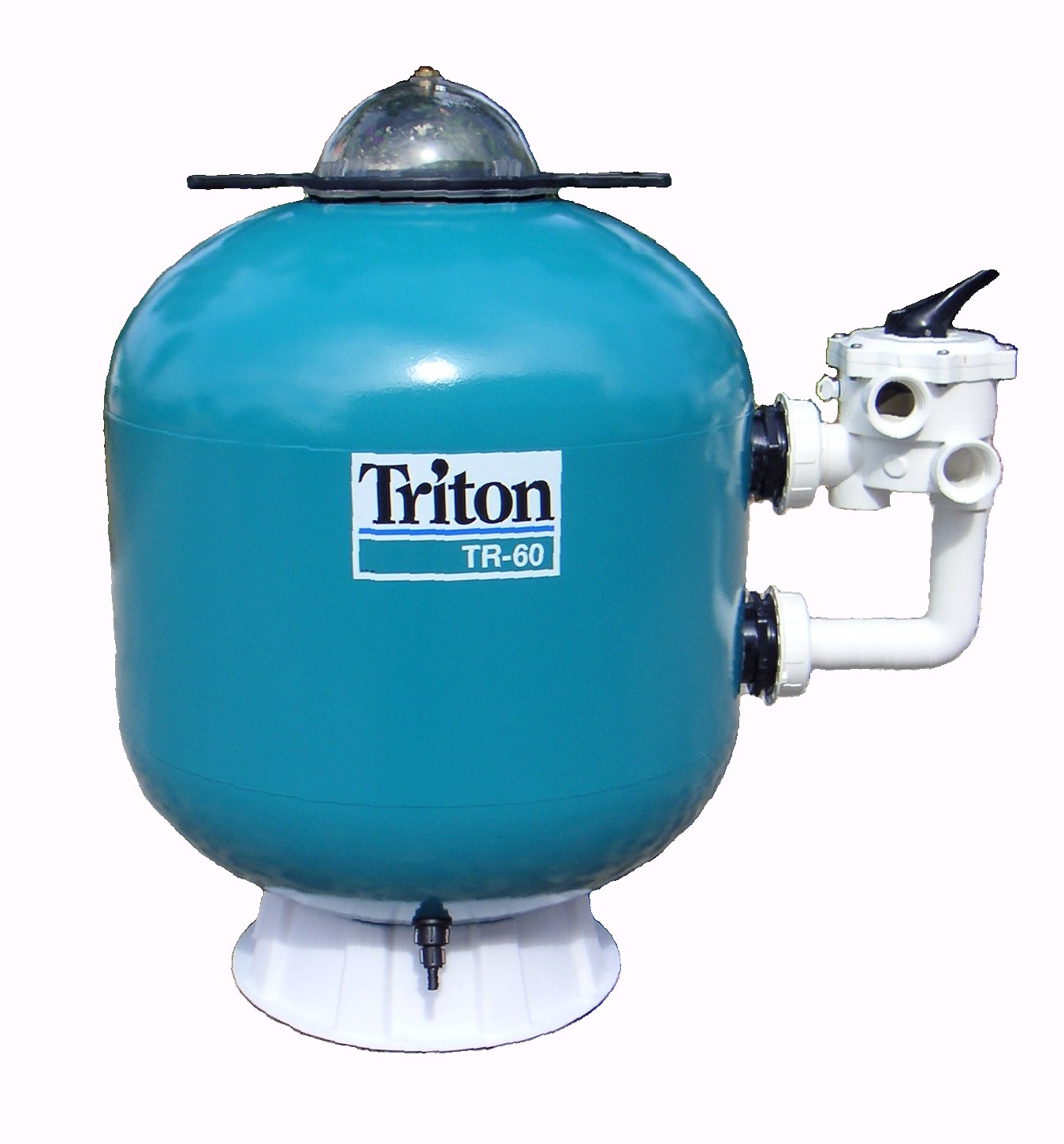

TRITON®

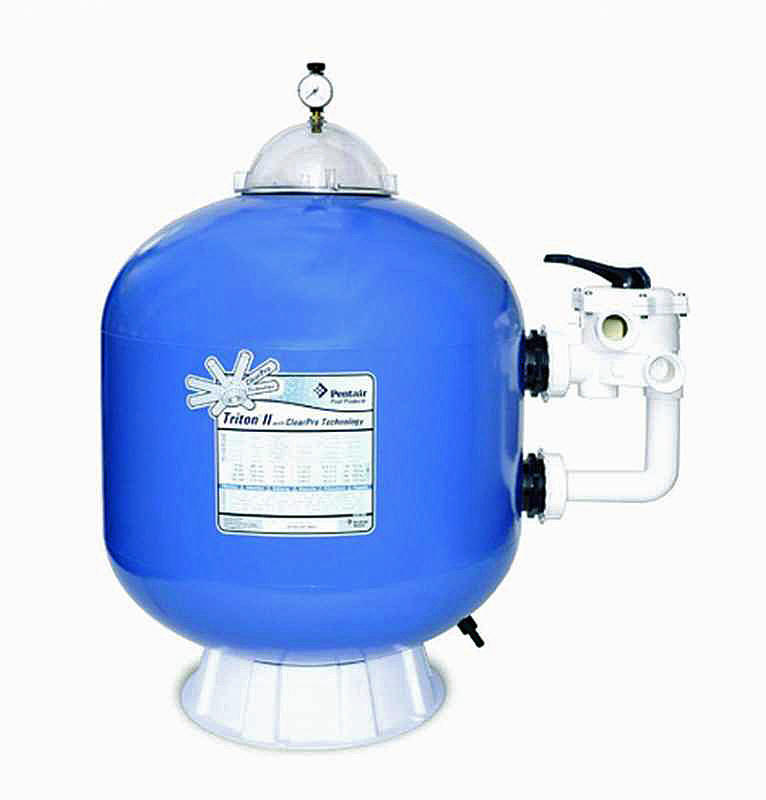

TRITON II®

    TR-II 40 TR-II 60 TR-II 100 TR-II 140
  Filter area m2 0,17 0,29 0,45 0,64
  Flow rate m3/h 8,5 14 22 32
  Filter sand, coarse-fine kg 20-52 40-108 80-200 120-310
  Height mm 825 955 1095 1200
  Ø Diameter mm 480 610 762 914
  The manufacturer reserves the right, to change all or part of the above features without prior notice.

SALAGUA, Lda

Centro de Piscina:  E.N.125  •  Sitio do Troto •  8135-030 Almancil  •  Algarve - Portugal

Tel: 289 99 22 81 •  Fax: 289 99 29 22  •   salagua@salagua.com
CHARACTERISTICS

  • Available with side or top mounted multi valve.

  • Filter body made from chemical-resistant and weatherproof plastic materials.

  • Transparent lid for easy inspection and access.

  • Collector and diffuser for continuous operation.

  • Pressure gauge to control filter backwash.

  • Extra large 117 to 225 mm opening for ease of handling and loading sand.

Sand Filter
DRESDEN  SAND FILTER

Height x

Diameter

Valve

Filter

Area m²

Flow Rate

m³/h
500 x   920 1 ½" 0,20 13
600 x 1000 1 ½" 0,28 15
800 x 1140 2" 0,80 25
BERLIN  HIGH-LAYER FILTER

Height x

Diameter

Valve

Filter

Area m²

Flow Rate

m³/h
500 x 1400 1 ½" 0,20 13
600 x 1460 2" 0,28 15
800 x 1525 2" 0,50 25

DRESDEN   Sand Filter

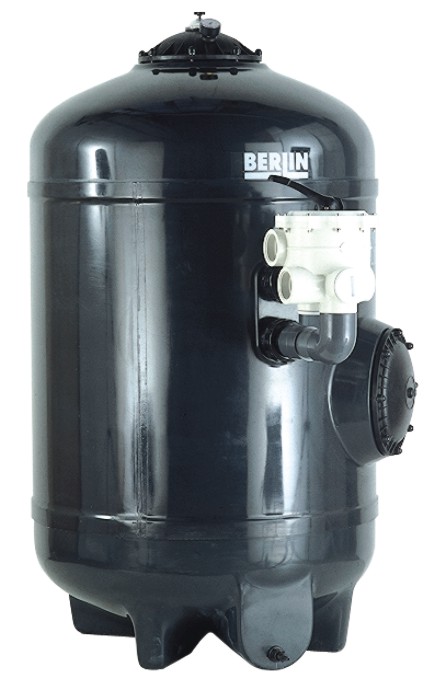

BERLIN   High-Layer Filter

Made from fibreglass re-enforced  Polyester-Resin. Internally coated, includes large service openings on top and on the side DN220, built-in filter cross, drain plug, manometer and manual bleeding valve.

Operating pressure: max 2,5 bar

Operating temperature: max 40º C

Made from fibreglass re-enforced  Polyester-Resin. Internally coated, includes large service openings on top and on the side DN220, built-in filter cross, drain plug, manometer and manual bleeding valve.

Operating pressure: max 2,5 bar

Operating temperature: max 40º C
